CR 25 Diedrich Destoner

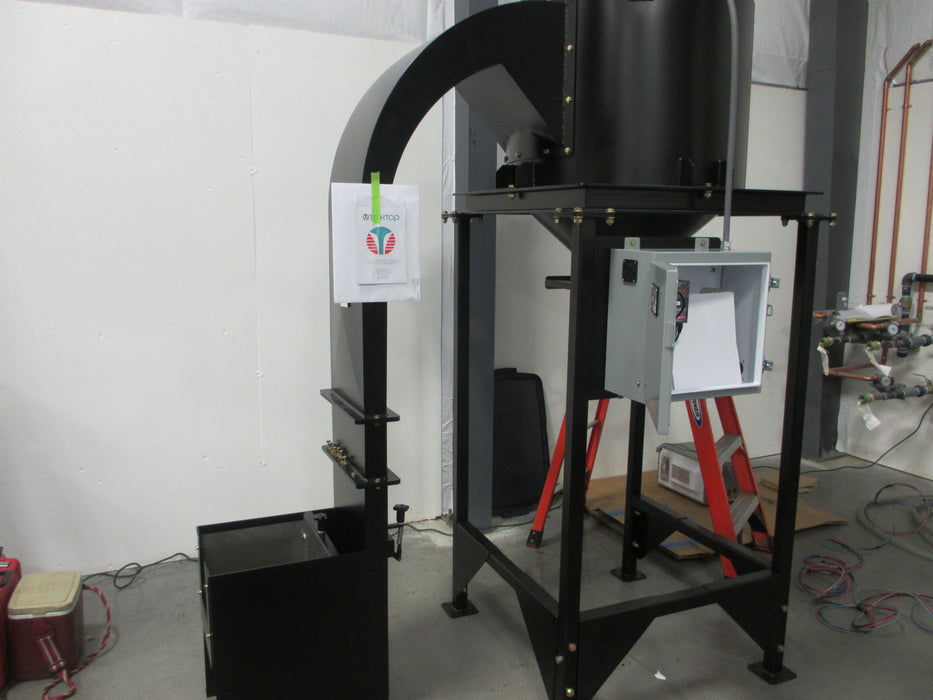

This Diedrich Destoner is actually like brand new. It was set up and used for only 1 day, only to discover it wouldn't work for the application, which is a cafe setting. Let the pictures tell the story on this one!
The destoner is built in several sections to accommodate a range of installation options;

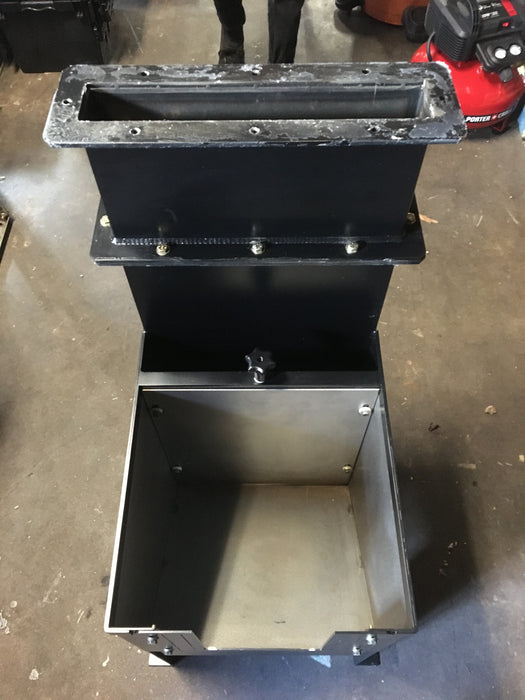

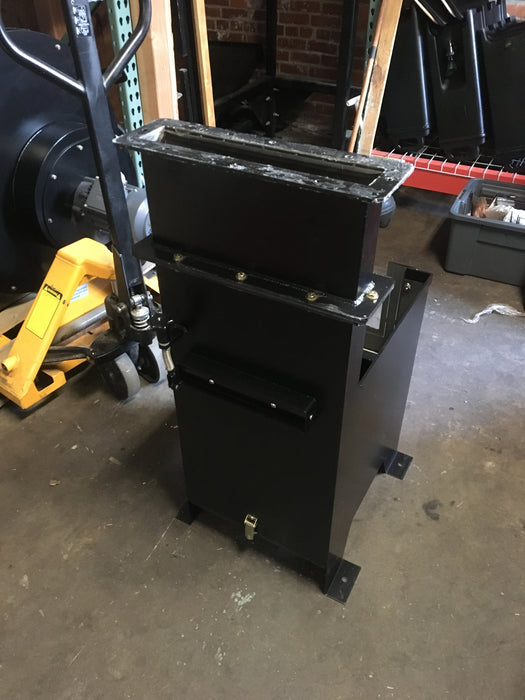

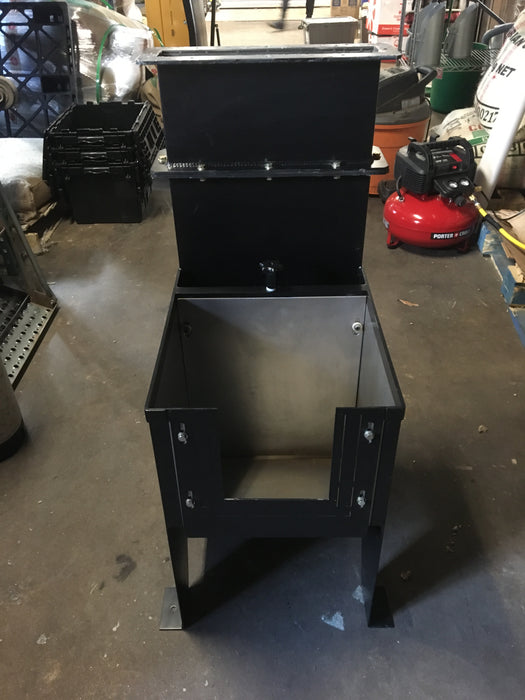

- Base unit

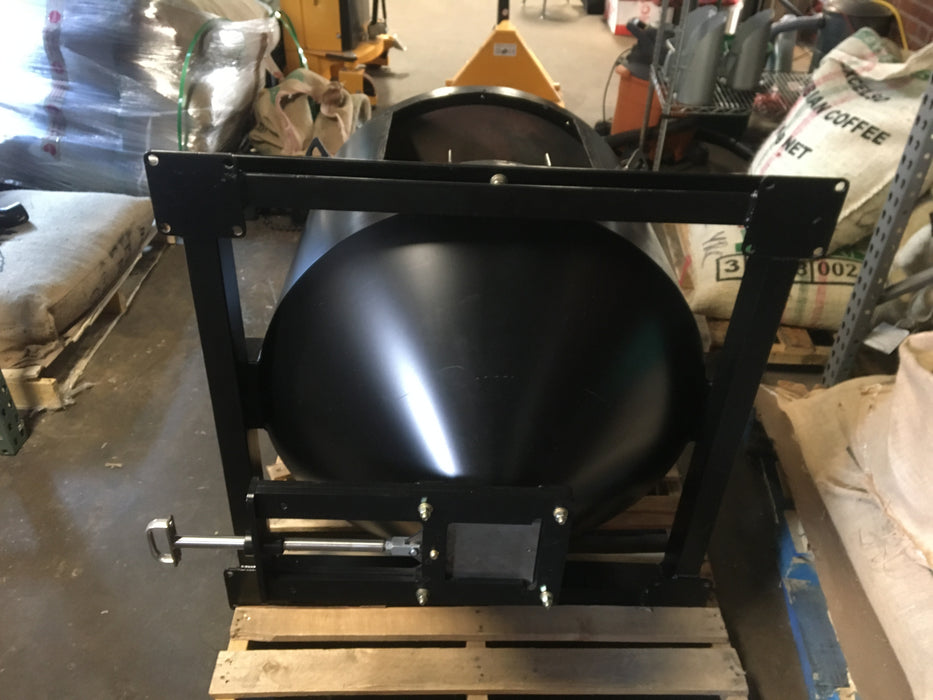

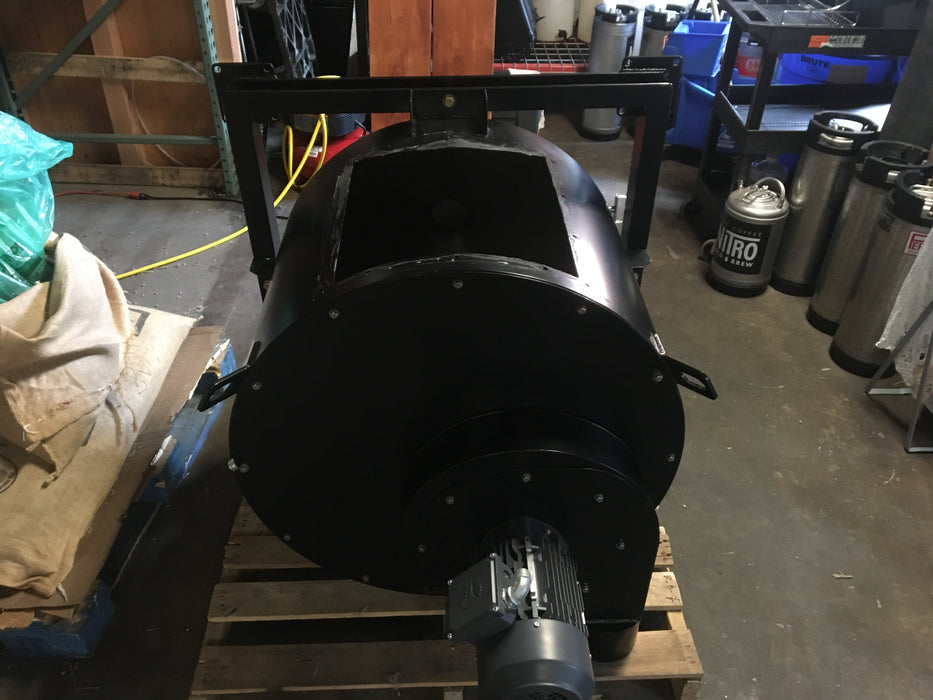

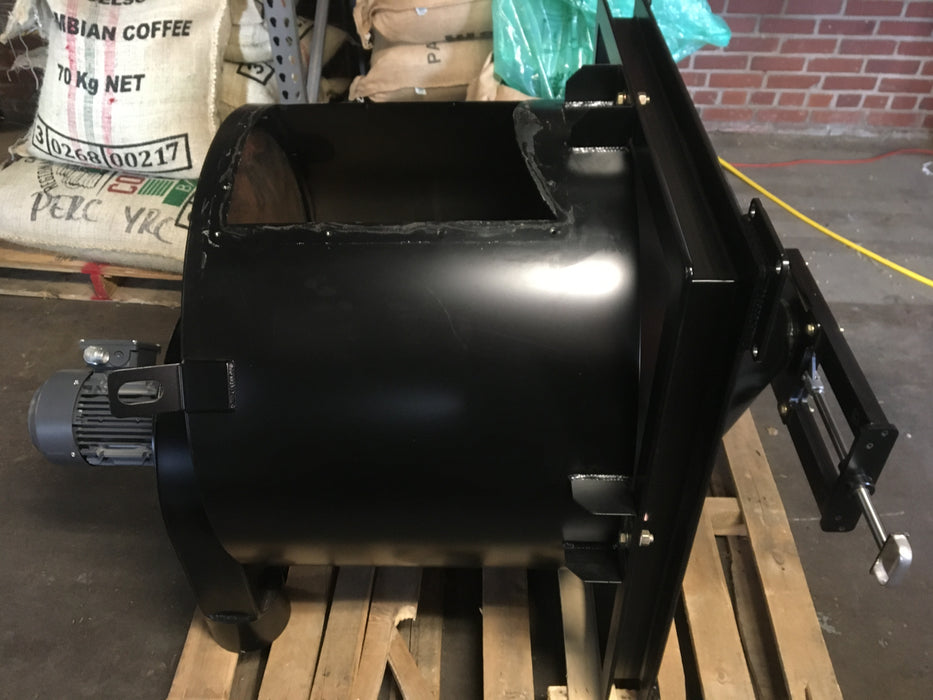

- Silo with vacuum blower.
If it is shipped disassembled, all flanges and tube connections must be sealed with a silicone caulking to prevent vacuum leaks. If this is not done, the system may be unable to create the vacuum needed to lift the coffee.

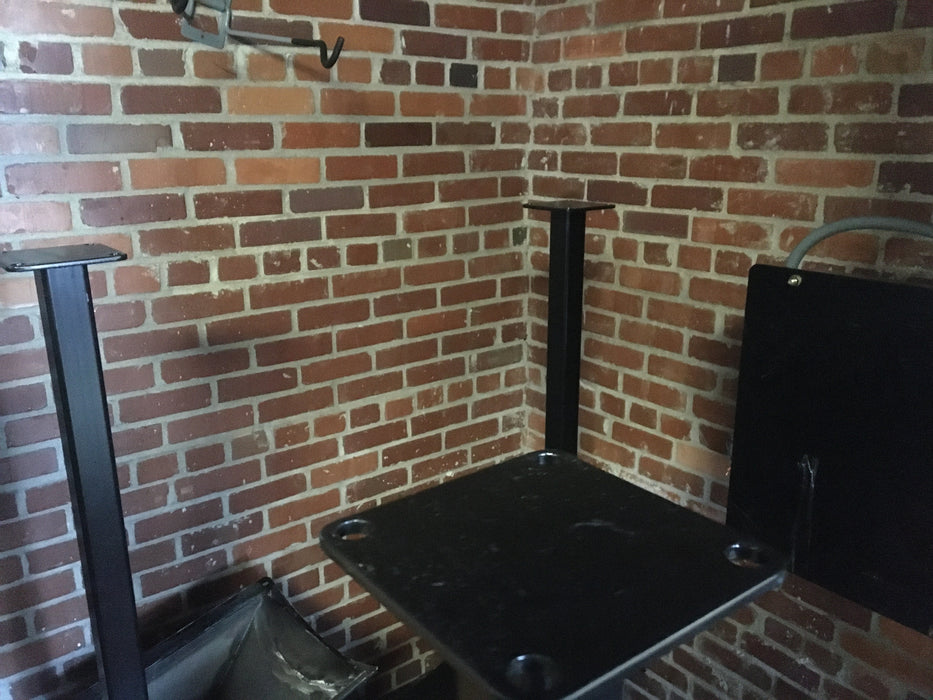

If the destoner silo is mounted to the building structure, the complete installation must be engineered to account for the weight of the coffee, the silo, and components.
Another consideration is the rigidity of the mounting structure, as the starting torque of the blower motor can cause shifting if the installation structure is inadequate. The exhaust of the destoner should be ducted outside the building and should allow access to inspect and or clean as needed.
