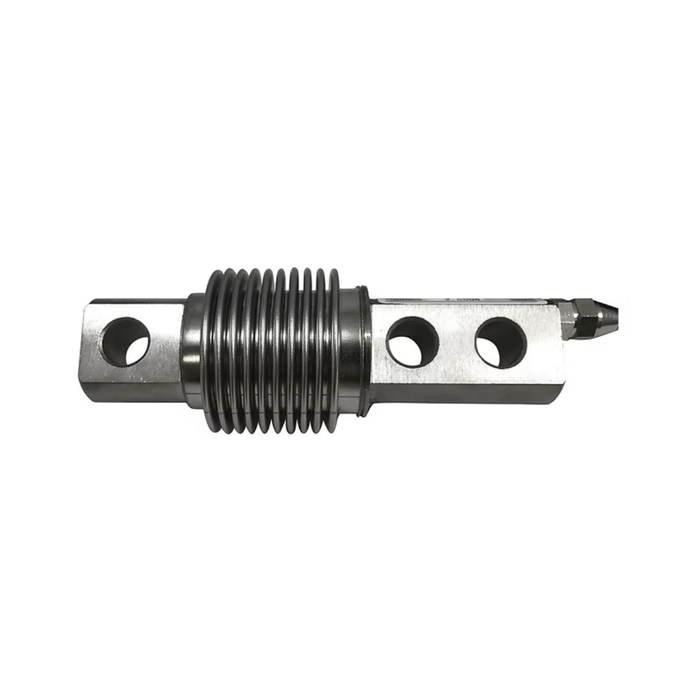

Tufner T316-SSW Single-Ended Beam Stainless Steel

Name: Tufner T316-SSW Single-Ended Beam Stainless Steel
Brand: Tufner
SKU: T316-SSW-15
Price: 420.0 USD
Availability: InStock

$420.00 - $420.00

$420.00

Price $420.00

$420.00 - $420.00

Price $420.00

World's Largest Coffee Roasting Marketplace Since 1972

Quantity

Description

Specifications

The Tufner T316-SSW single-ended beam load cell fits food processing, chemical exposure, and wash area use. Stainless steel construction supports corrosion resistance and long service life. NTEP Class III 1:5,000 certification supports legal trade scale systems.

A hermetic seal with IP68 protection supports dust-tight sealing and long immersion resistance. Safe overload reaches 150% full scale, and destructive load reaches 300% full scale. Capacity options range from 15 kg to 300 kg for platform scales and compact industrial systems.

A 20 ft heavy-duty metal shielded cable supports stable signal transfer. Rated output is 2.0 mV/V with repeatability at ±0.02% full scale for consistent readings. Wiring uses red plus excitation, black minus excitation, green plus signal, and white minus signal.

Alternatives of Tufner T316-SSW Single-Ended Beam Stainless Steel

About Tufner

Tufner is a trusted manufacturer of customizable control and weighing systems for agricultural equipment. Its product range includes ISOBUS-compatible handheld controllers, load cells, truck scales, and sanitation systems. Tufner delivers precision, reliability, and tailored software solutions. Since 2000, the company has provided innovative, high-quality products to clients worldwide.

Rated Capacity: 15/30/50/75/150/250/300 kgs.
Rated Output: 2.0mV/V
Non-Linearity: ±0.03% F.S.
Hysteresis: ±0.03% F.S.
Repeatability: ±0.02% F.S.
Creep (30 minutes): ±0.03% F.S.
Temperature Effect on Span: ±0.0015% F.S./C
Temperature Effect on Zero: ±0.0027% F.S./C
Zero Balance: ±1.00% F.S.
Insulation Resistance: >5000 MEGOHMS
Input Impedance: 385±20Ω
Output Impedance: 350±3Ω
Safe Overload: 150% F.S
Destructive Load: 300% F.S
Excitation Recommended: 10-15V AC/DC
Material/Finish: Alloy Steel
Operation Temperature: -10°C - + 40°C (14°F - 104°F)
Cable Length: Standard Cable - 20ft/6m
Load Cell Wiring:
Red........ +Excitation
Black...... -Excitation
Green..... +Signal
White...... -Signal
