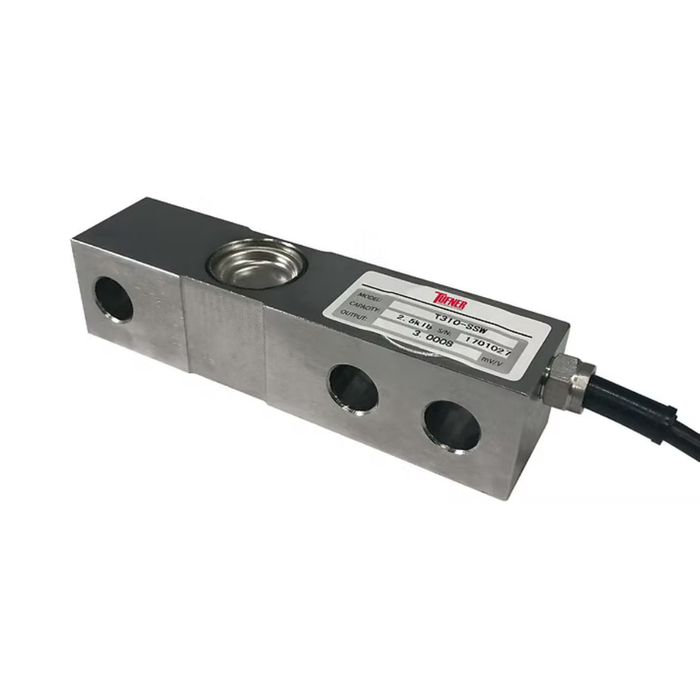

Tufner T310-SSW Single-Ended Beam Load Cell - Stainless Steel

Name: Tufner T310-SSW Single-Ended Beam Load Cell - Stainless Steel
Brand: Tufner
SKU: T310-SSW-0.5
Price: 205.0 USD
Availability: InStock

$205.00 - $595.00

$205.00

Price $205.00

$205.00 - $595.00

Price $205.00

World's Largest Coffee Roasting Marketplace Since 1972

Quantity

Description

Specifications

The Tufner T310-SSW single-ended beam load cell is suitable for food-grade chemical and wet-plant environments. Stainless steel construction provides corrosion resistance and wash-area durability. NTEP Class III 1:5,000 certification supports legal trade scale systems.

IP68 sealing supports moisture-proof protection and long immersion resistance. Safe overload reaches 150% full scale, and destructive load reaches 300% full scale. Capacity options span 500 lb to 20,000 lb for floor scales, tank assemblies, and platform scales.

A 20 ft heavy-duty metal-shielded cable supports stable signal transmission. Rated output is 3.0 mV/V with strong repeatability for consistent readings. Wiring uses red for plus excitation, black for minus excitation, green for plus signal, and white for minus signal.

Model	Capacity	Size
T310-0.1	100 lbs	Small
T310-0.25	250 lbs	Small
T310-0.5	500 lbs	Small
T310-0.75	750 lbs	Small
T310-1	1000 lbs	Small
T310-1.5	1500 lbs	Small
T310-2.5	2500 lbs	Small
T310-4	4000 lbs	Small
T310-5	5000 lbs	Small
T310LE-5	5000 lbs	Large
T310-10	10000 lbs	Large
T310-15	15000 lbs	Large
T310-20	20000 lbs	Large

Alternatives of Tufner T310-SSW Single-Ended Beam Load Cell - Stainless Steel

About Tufner

Tufner is a trusted manufacturer of customizable control and weighing systems for agricultural equipment. Its product range includes ISOBUS-compatible handheld controllers, load cells, truck scales, and sanitation systems. Tufner delivers precision, reliability, and tailored software solutions. Since 2000, the company has provided innovative, high-quality products to clients worldwide.

Rated Capacity: 500/750/1K/1.5K/2K/2.5K/4K/5K/10K/15K/20K lbs.
Rated Output: 3.0mV/V
Non-Linearity: ±0.03% F.S.
Hysteresis: ±0.03% F.S.
Repeatability: ±0.02% F.S.
Creep (30 minutes): ±0.02% F.S.
Temperature Effect on Span: ±0.0015% F.S./C
Temperature Effect on Zero: ±0.0027% F.S./C
Zero Balance: ±1.00% F.S.
Insulation Resistance: >5000 MEGOHMS
Input Impedance: 385±20Ω
Output Impedance: 350±3Ω
Safe Overload: 150% F.S
Destructive Load: 300% F.S
Excitation Recommended: 10-15V AC/DC
Material/Finish: Stainless Steel
Operation Temperature: -10°C - + 40°C (14°F - 104°F)
Cable Length: Standard Cable - 20ft/6m
Load Cell Wiring:
Red........ +Excitation
Black...... -Excitation
Green..... +Signal
White...... -Signal
