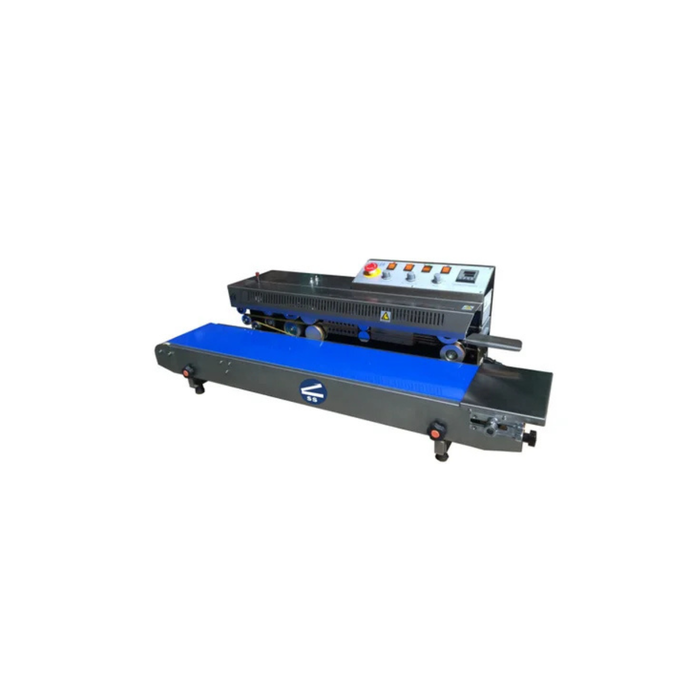

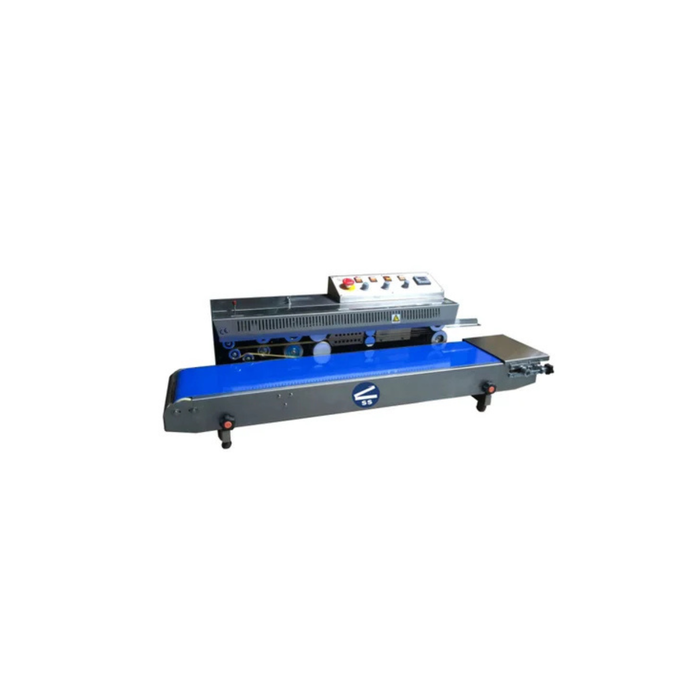

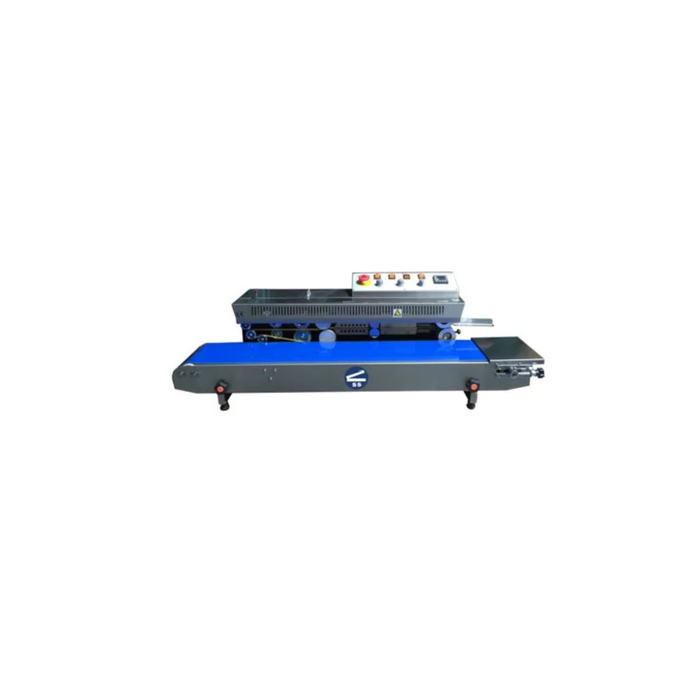

BAND SEALER HORIZONTAL WITH DRY INK CODING

Now Available Vertical!

Newest addition to our horizontal band sealer product line providing the best combination of elegance and functionality in one unit. This sealer provides a 15 mm seal width, the widest seal available! It is a heavier duty model compared to the CBS and HLM band sealer lines and offers the best sealing quality on the market.

STANDARD FEATURES

• Durable stainless steel
• Easy to operate - minimal operator training
• Fast warm uptime
• Seals any thermoplastic material including PE, PP, and laminates
• Solid-state temperature controller to maintain seal bars at proper temperature for consistent seal quality
• Fully adjustable conveyor
• Motorized rubber conveyor with speed control
• Knurled pressure rolls with variable pressure adjustment
• Embossing attachment allows for printing on seal line w/o ink
• One pair each of cooling and heating blocks Sealing method - constant/direct heat - 15 mm seal width
• Unit feeds right to left
• Equipped with an emergency stop button
• Min/Max Ceiling Height: 7 7/8" - 12 1/2"
• Spare parts include: PC Board, PTFE sealing belt, wheel belt, tools, and typeset
• Shipping via freight only
• Available in Horizontal or Vertical Configuration

Specifications

• Power: 110 V/60 Hz
• Motor Power: 50W
• Sealing Speed: 0-472 Inches/Minute

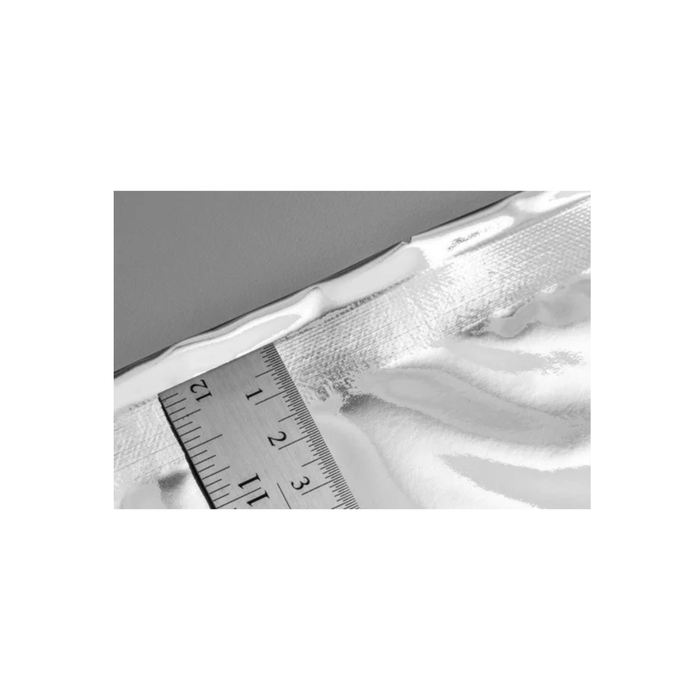

• Seal Width: 15 mm / Optional: 20 mm
• Temperature Range: 0-300vdegC
• Sealing Power (W): 300 x 2
• Conveyor Size: 42" x 8"
• Bag Size (Filled) Vertical: Minimum: 7 7/8" & Maximum: 12 1/2"
• Max Conveyor Load (Single Bag): 6.6 lbs
• Max Conveyor Load: 6.6 lbs

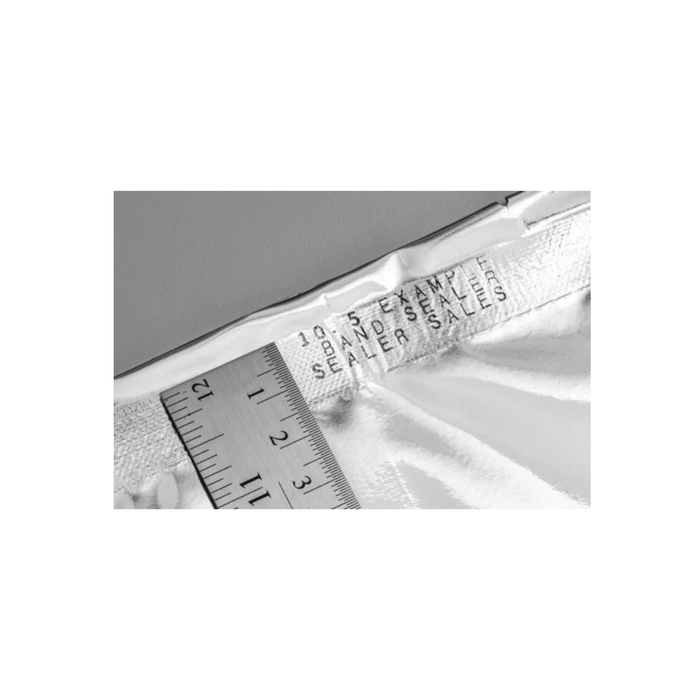

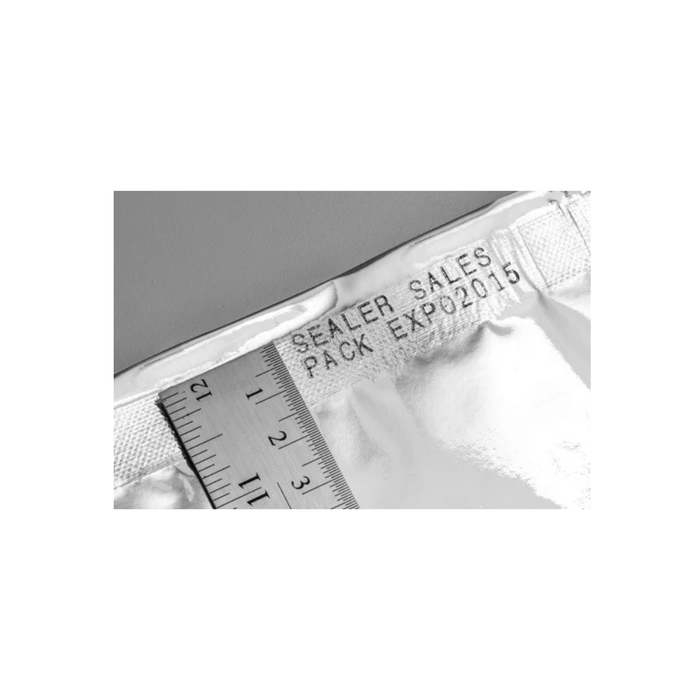

• Character Size (Two Types Available):R-Type: Pt 18 pt - 2 Lines
• Option: PT 10.5 - 3 Lines
• Printing Heating Power (W): 40 x 2
• Printing Options: 20 Characters/Line
• Dimensions: 42" x 18" x 20"
• Weight: 119 lbs Net / Shipping: 150 lbs
