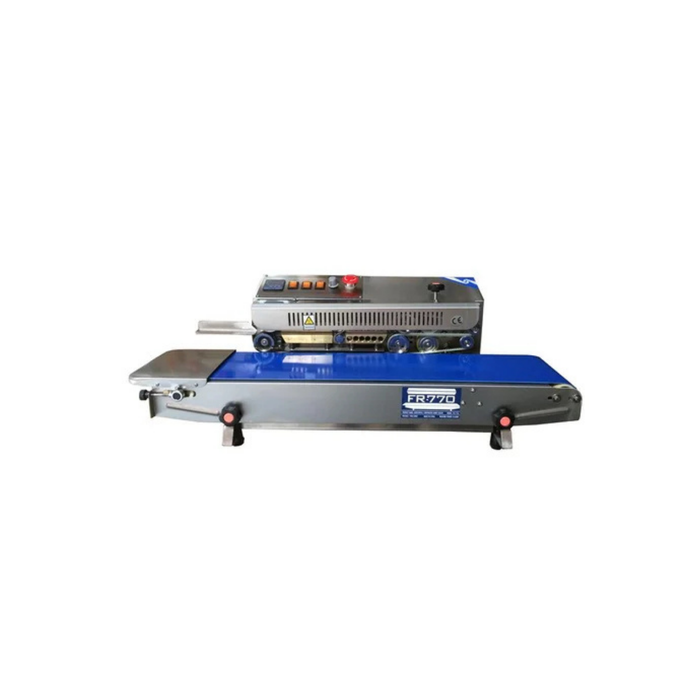

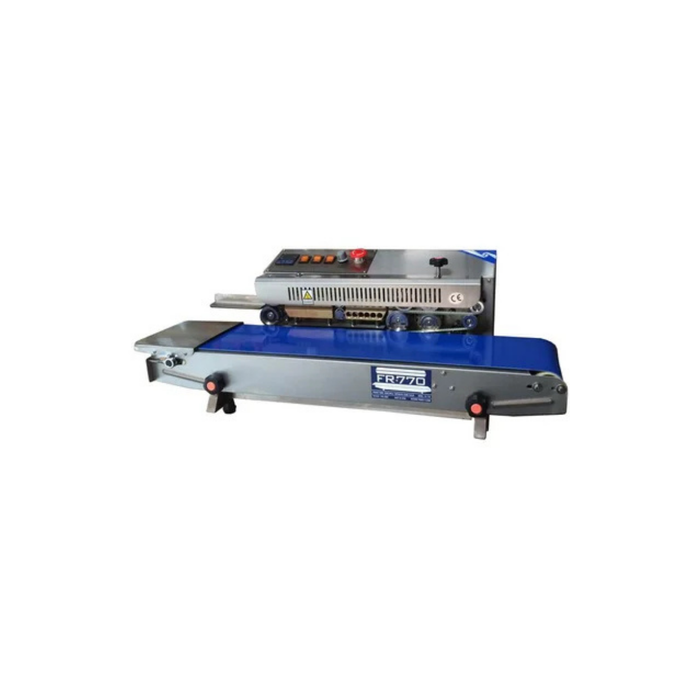

Band Sealer Light Duty - Left to Right

$996.00

Description

Light Duty Left to Right Band Sealers with a Great Value Proposition

This light duty Left to Right Band Sealer is available in a horizontal model FR-770I or can be converted to a vertical model FR-770II with a conversion kit.  It can seal 20-26 6" wide all types of thermoplastic materials and bags bags a minute.

FEATURES

  • Durable stainless steel
  • Easy to operate - minimal operator training
  • Fast warm up time
  • Seals any thermoplastic material including PE, PP, and laminates
  • Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality
  • Motorized rubber conveyor with speed control
  • Knurled pressure wheel rolls with variable pressure adjustment
  • One pair each of cooling and heating blocks
  • Sealing method - constant direct heat
  • Unit feeds right to left
  • Equipped with an emergency stop button
  • Can easily be converted to a vertical configuration with an optional converting kit

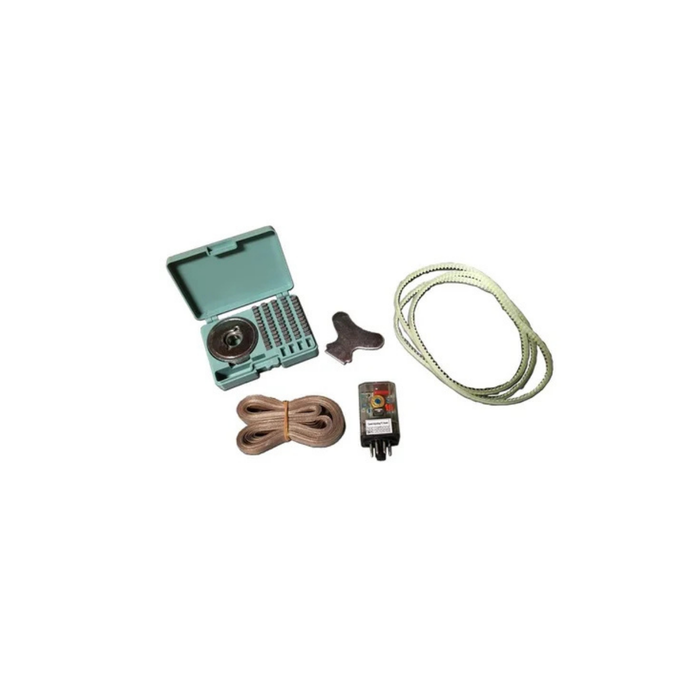

  • Manufacturer’s spare parts kit include:  PTFE sealing belt, drive belt, PC Board, tools, and typesets (numbers 0-9 and letters EXD)

OPTIONAL FEATURES

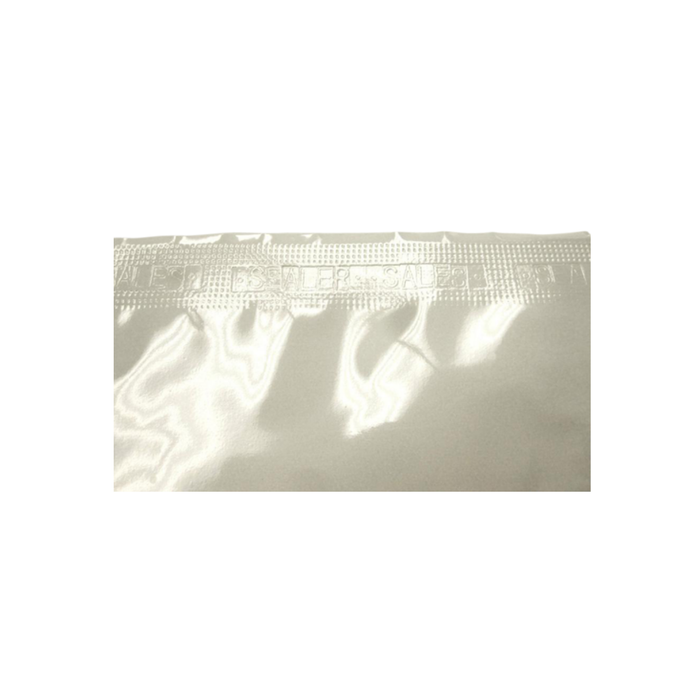

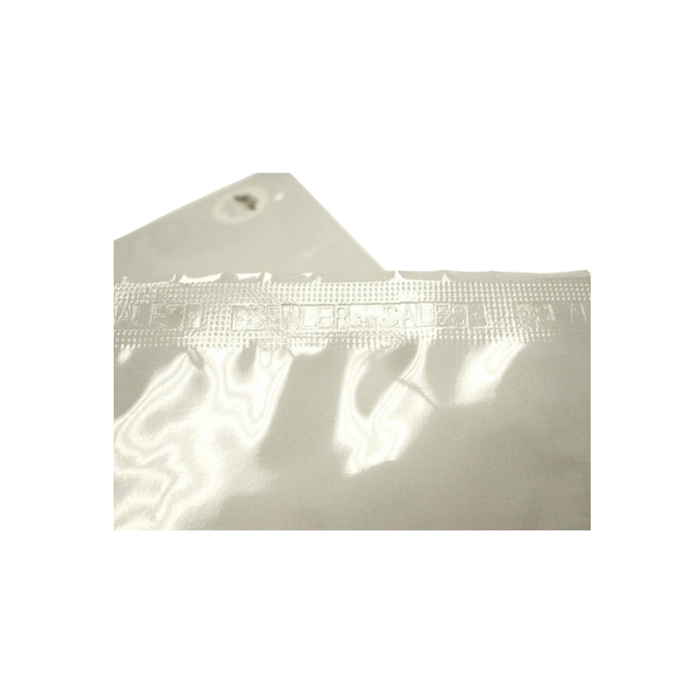

  • 2-line embossing wheel
  • Stainless steel stand for horizontal units only
  • 15mm seal width
  • Digital counter to keep track of sealed packages

SPECIFICATIONS

 Power 110V / 60Hz
Motor Power 50W
Sealing Speed 0-472"/min

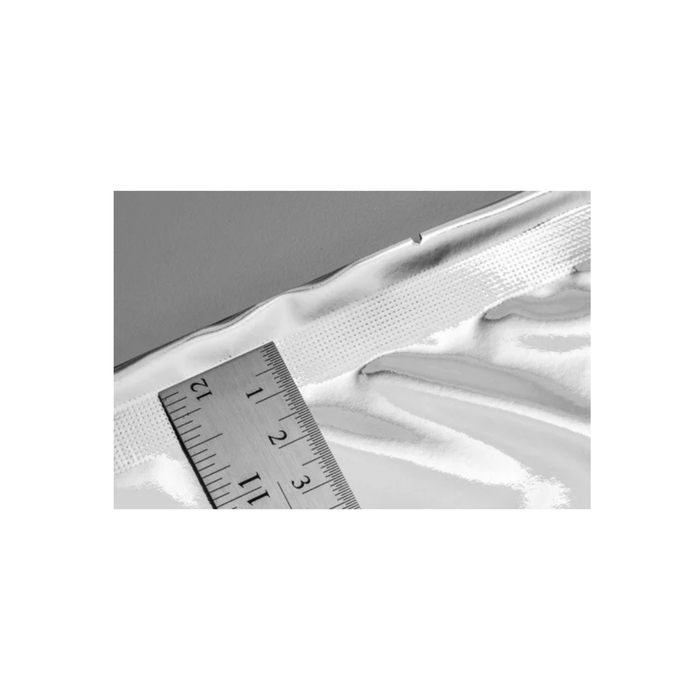

Seal Width 8MM
Temperature Range 0-300°C
Conveyor Size 38" x 7"
Single Conveyor Load 2.2lbs
Max. Conveyor Load 6.6lbs
Bag Size (Vertical) 7.8"-12"
Character Size 3 x 4 x 9mm
Optional Embossing 1 Line Embossing (3 sections with 15 characters/line)
Dimensions 33" x 17" x 13"
Weight (lbs)  66
Dimensions with kit 33" x 17" x 22"
Weight (lbs) with kit 87


Instructions included

Also, comes with several supplies to put together.
