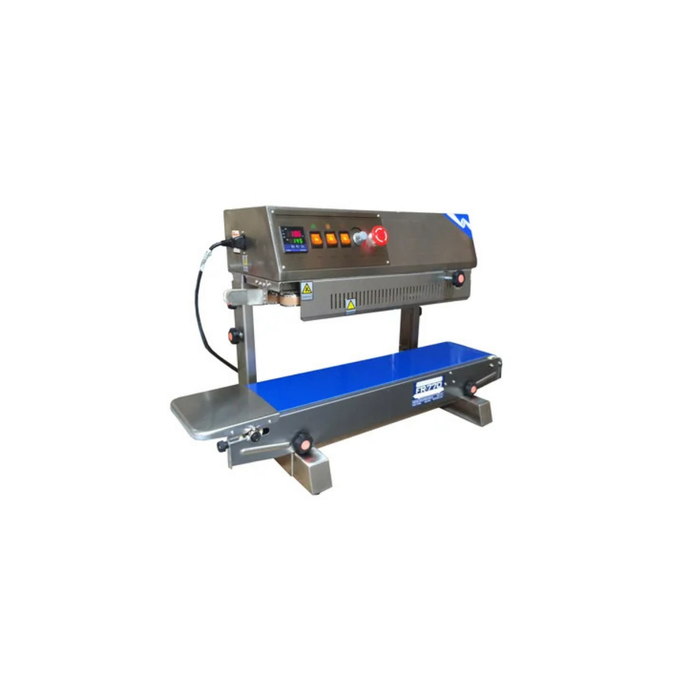

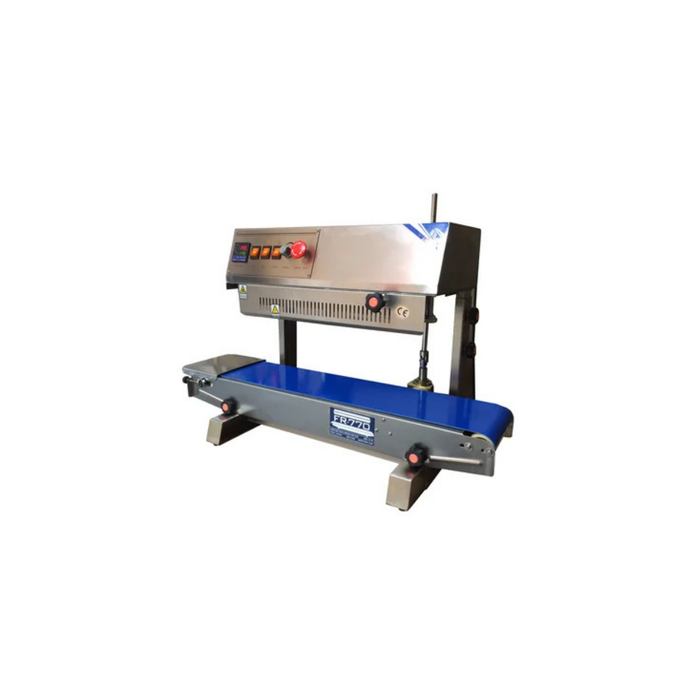

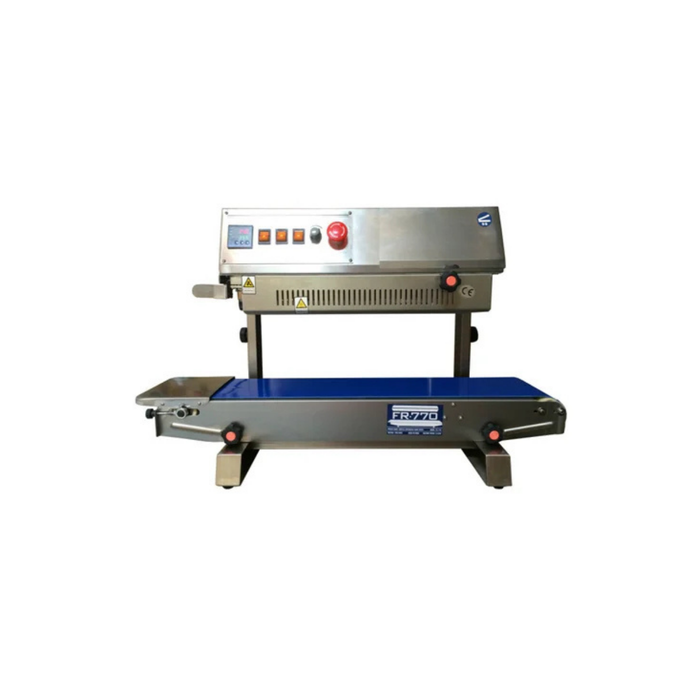

Vertical Band Sealer



Suitable for sealing all types of plastic materials and bags.  One of our most popular band sealers with a great value proposition.  Can seal 20-26 6" wide poly bags per minute.


  • Vertical configuration with minimum and maximum bag height when bag filled:  Min: 7.8" / Max: 12.0"

  • Durable stainless steel

  • Easy to operate - minimal operator training

  • Fast warm uptime

  • Seals any thermoplastic material including PE, PP, and laminates

  • Solid-state temperature controller to maintain seal bars at the proper temperature for consistent seal quality

  • Motorized rubber conveyor with speed control

  • Knurled pressure wheel rolls with variable pressure adjustment

  • One pair each of cooling and heating blocks

  • Sealing method - constant direct heat

  • Unit feeds left to right

  • Equipped with an emergency stop button

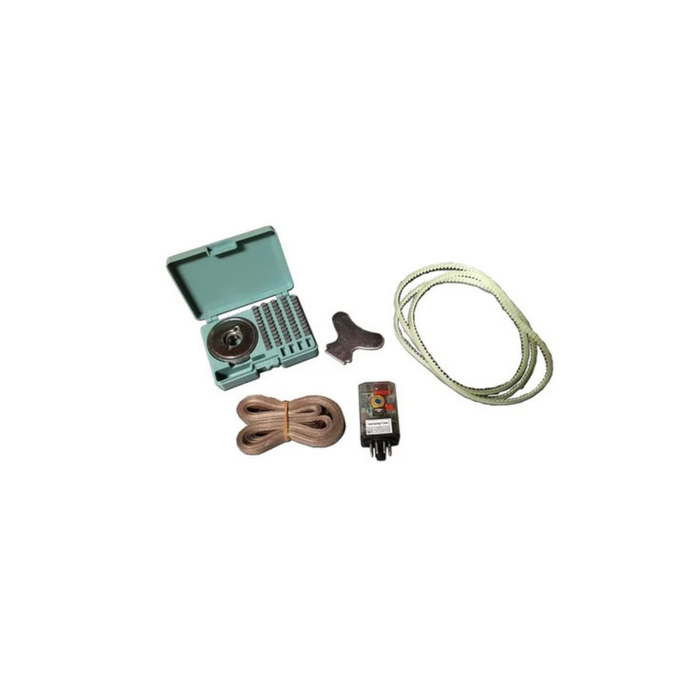

  • Manufacturer’s spare parts kit includes::  PTFE sealing belt, drive belt, PC Board, tools, and typesets (numbers 0-9 and letters EXD)

  • Unit ships via LTL freight only. Call for freight rates.

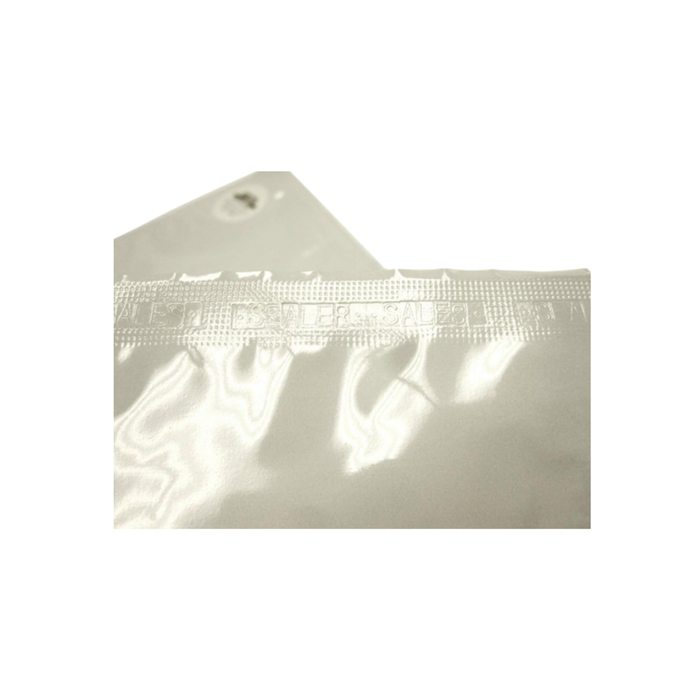

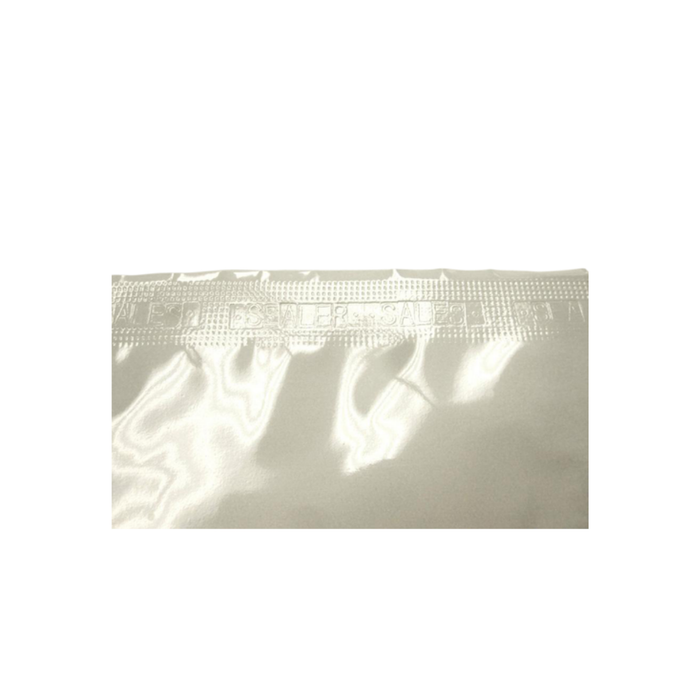

  • 2-line embossing wheel

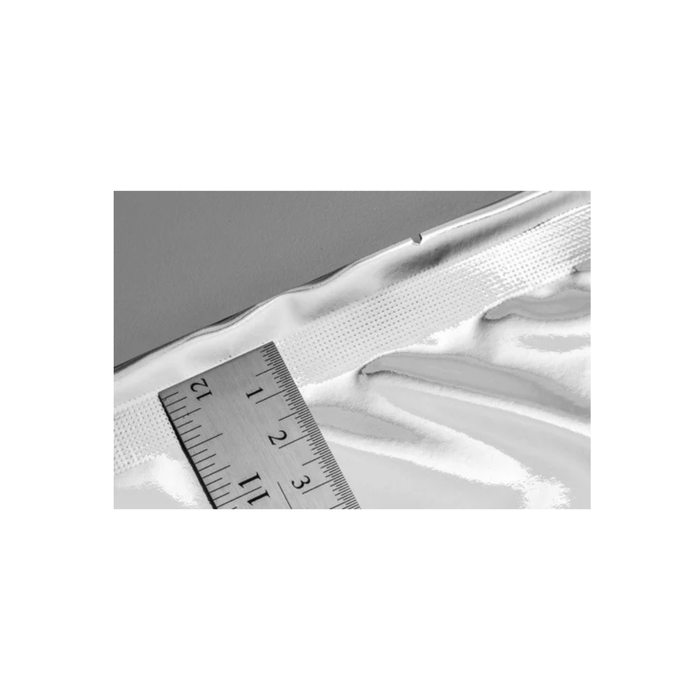

  • 15mm seal width

  • Digital counter to keep track of sealed packages

  • Increase vertical configuration to a minimum and maximum bag height when filled:  Min: 12" / Max: 16"

  • Power 110V / 60Hz
    Motor Power 50W
    Sealing Speed 0-472"/min
    Seal Width 8MM
    Temperature Range 0-300°C
    Conveyor Size 38" x 7"
    Single Conveyor Load 2.2lbs
    Max. Conveyor Load 6.6lbs
    Character Size 3 x 4 x 9mm
    Optional Embossing 1 Line Embossing (3 sections with 15 characters/line)
    Dimensions 33" x 17" x 22"
    Weight (lbs) 87
