Dry Storage Bins - 1520 lbs. Green / 920 lbs. Roasted Bean Capacity - Made In USA - New
Mobile Food Grade Storage Bins
A successful roastery is made up of the sum of its parts, all working together to deliver a great product to your customers. This includes coffee bean storage — an often forgotten but unsung hero of good coffee roastery practices.
CoffeeTec brings you a perfect solution for your green and roasted coffee bean storage that helps you alleviate
- Poor use of limited floor space.
- Injuries that can come with repetitive bending, lifting, and moving heavy sacks.
- Product contamination from porous burlap sacks that can attract bacteria and foreign matter.
With a good storage system in place, you’ll also save time. Daily chores involving storage upkeep are able to be performed more quickly, providing better working economies.
STORAGE BIN FEATURES:
All bins are US-made, which means fast turnaround. No waiting on materials to be shipped from overseas.
- Made of food-grade, BPA-free polymer resin
- FDA-approved/FSMA-compliant
- Fully enclosed removable lid
- Safe for outside storage down to -20 Fahrenheit
- Sturdy, fully welded US steel frame with food-grade powder coating
- Translucent bins to see fill lines
- Great for pallet racking! (bins are non-stackable)
- Custom logo and color options to match your roastery’s branding (quantity of 15 or more)
- Each bin and steel frame combo has a 2,600-lb max weight capacity; actual volume varies depending on density of material used (green vs. roasted beans).
- All bins are pallet-wrapped and strapped, shipped directly to you fully assembled. The only piece you have to (easily) attach is the bean chute, tucked into each bin before wrapping.
- All of the feet of the welded steel bin frames are designed with a compatible hole pattern to fit the kits.
- Fork pockets come standard on the 295 & 320 gallon bins. They are optional if not desired. Not available on the 46 & 66 gallon bins due to size constraints. However, they can still be used with forklift or pallet jack as frame supports.
- Caster Kits (OPTIONAL) come with 2 universal swivel, locking wheels and 2 fixed wheels, along with hardware for installation, and can withstand up to 5,000 pounds.
- Bins are self-discharging (manual operation with easy-slide handle), OR with bottom and side automated pneumatic discharge (OPTIONAL)

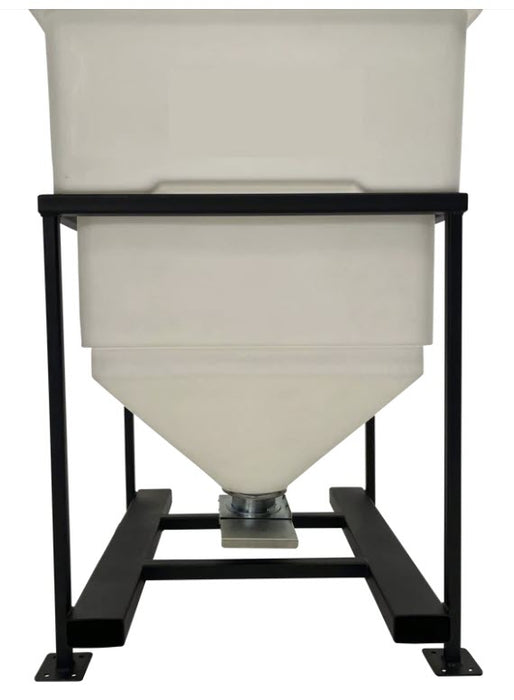

295 Gallon / 1,520 lbs. Green/920 lbs. Roasted Coffee Bin
STORAGE BIN SPECIFICATIONS:
| CAPACITY - GALLONS/CUBIC FEET | 295 Gallons/40 cu. ft. |
| CAPACITY COFFEE BEANS - GREEN | 1,520 lbs. |
| CAPACITY COFFEE BEANS - ROASTED | 920 lbs. |
| OUTSIDE DIMENSIONS OF FRAME - FRONT TO BACK | 42 7/8" |
| OUTSIDE DIMENSIONS OF FRAME - SIDE TO SIDE | 42 7/8" |
| DISTANCE FROM BOTTOM OF OPENING TO GROUND | 23 7/8" |
| WIDTH OF OPENING ON BIN | 6" |
| SPACE BETWEEN FORK POCKETS | 27 1/2" |
| OVERALL HEIGHT OF BIN IN FRAME WITH LID | 71" |
| EMPTY WEIGHT | 432 lbs. |
| HANDLE & DOOR MATERIAL | Stainless Steel |
| SAFE WORKING LOAD | 2600 lbs. |
OPTIONS (Additional price):
|
AUTOMATED DOOR - 46 & 295 Gallon Bins |
$500 |
| AUTOMATED DOOR - 66 & 320 Gallon Bins | $500 |
| CASTER KIT - Bolt right to bottom of frame feet. Hardware included. | $250 |
| BIN EXTENSION - 23 Cubic Feet Add-On Section (874 lbs. Green / 529 lbs. Roasted Coffee) for 295 & 325 Gallon Bins Only | $430 |
ADDITIONAL SIZES & ADD-ON SECTION (link to listing):
CONTACT SALES DIRECT @ 650-569-0011 to find out more!
