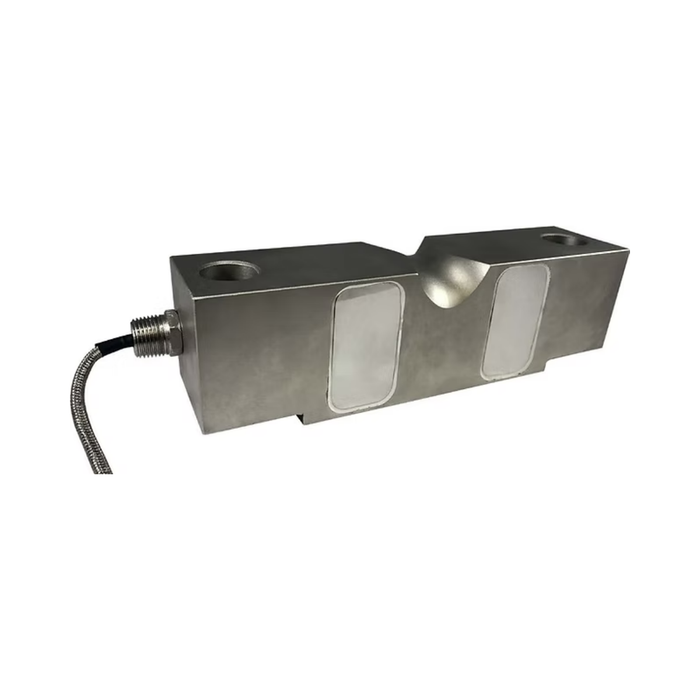

Tufner T350 Double-Ended Beam Nickel-Plated Alloy Steel multiple Load Cell

Tufner T350 Double-Ended Beam Nickel-Plated Alloy Steel multiple Load Cell

$580.00 - $1,965.00
$580.00
Price $580.00
$580.00 - $1,965.00
Price $580.00

World's Largest Coffee Roasting Marketplace Since 1972

Description

Specifications

The Tufner T350 double-ended beam load cell is compliant with legal for trade truck scales and heavy platform systems that require high-resolution performance. Nickel-plated alloy steel supports strength and corrosion resistance for outdoor yards and industrial sites.

IP67 protection provides dust-tight sealing and protection against water exposure. Safe overload reaches 150% full scale, and destructive load reaches 300% full scale. NTEP Class III 1:10,000 certification supports demanding commercial applications. Capacity options span 10,000 lb to 200,000 lb.

Rated output is 3.0 mV/V with repeatability at ±0.02% full scale for stable readings. Cable options include 40 ft on select models and 60 ft, double-shielded, on higher-capacity models. Wiring uses red for plus excitation, black for minus excitation, green for plus signal, and white for minus signal.

About Tufner

Tufner is a trusted manufacturer of customizable control and weighing systems for agricultural equipment. Its product range includes ISOBUS-compatible handheld controllers, load cells, truck scales, and sanitation systems. Tufner delivers precision, reliability, and tailored software solutions. Since 2000, the company has provided innovative, high-quality products to clients worldwide.

  • Rated Capacity: 10K/20K/25K/30K/40K/50K/ 50K LE/60K/75K/100K/125K/ 150K/200K lbs.
  • Rated Output: 3.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.02% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 700±10Ω
  • Output Impedance: 700±5Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S.
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length:
    -     Standard (10K-40K lbs): 40ft/12m
    - Double-Shielded (50K-200K lbs.): 60ft/18m
  • Load Cell Wiring:
    Red........ +Excitation
    Black...... -Excitation
    Green..... +Signal
    White...... -Signal
