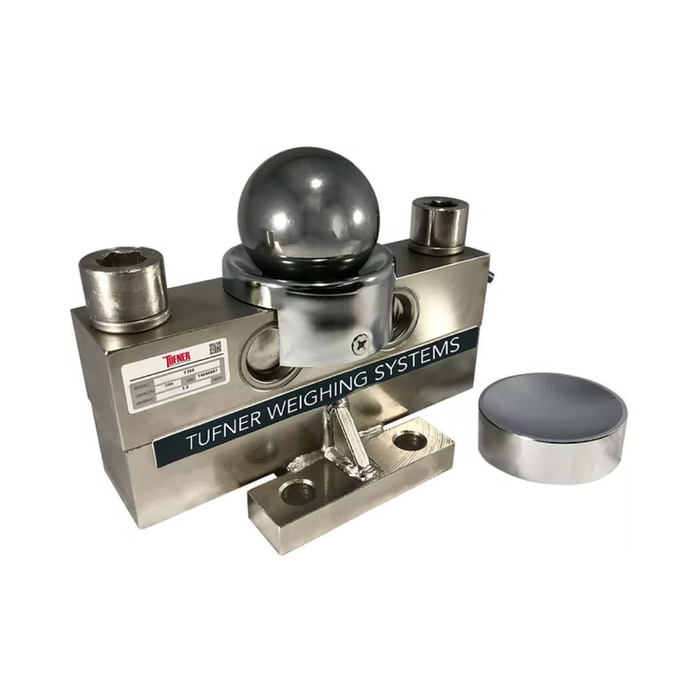

Tufner T360 Double-Ended Beam Nickel-Plated Alloy Steel

Tufner T360 Double-Ended Beam Nickel-Plated Alloy Steel

$650.00 - $850.00
$650.00
Price $650.00
$650.00 - $850.00
Price $650.00

World's Largest Coffee Roasting Marketplace Since 1972

Description

Specifications

The Tufner T360 double-ended beam load cell is designed for truck scales and heavy platform systems that require stable beam performance. Nickel-plated alloy steel supports strength and corrosion resistance for outdoor yards and industrial sites.

IP67 protection provides dust-tight sealing and protection against water exposure. Safe overload reaches 150% full scale, and destructive load reaches 200% full scale. Capacity options range from 5 to 50 tons to support wide system coverage.

Rated output is 2.0 mV/V with repeatability at ±0.02% full scale for stable readings. Cable length options include 40 ft for 5-ton to 20-ton models and 60 ft for 25-ton to 50-ton models. Wiring uses red for plus excitation, black for minus excitation, green for plus signal, and white for minus signal.

Alternatives of Tufner T360 Double-Ended Beam Nickel-Plated Alloy Steel

About Tufner

Tufner is a trusted manufacturer of customizable control and weighing systems for agricultural equipment. Its product range includes ISOBUS-compatible handheld controllers, load cells, truck scales, and sanitation systems. Tufner delivers precision, reliability, and tailored software solutions. Since 2000, the company has provided innovative, high-quality products to clients worldwide.

  • Rated Capacity: 5/10/15/20/25/30/40/50 tons
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.02% F.S.
  • Hysteresis: ±0.02% F.S.
  • Repeatability: ±0.02% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 700±10Ω
  • Output Impedance: 700±5Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 200% F.S.
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard/Double-Shielded
    - 5t - 20t: 40ft/12m
    - 25t - 50t: 60ft/18m
  • Load Cell Wiring:
    Red........ +Excitation
    Black...... -Excitation
    Green..... +Signal
    White...... -Signal
