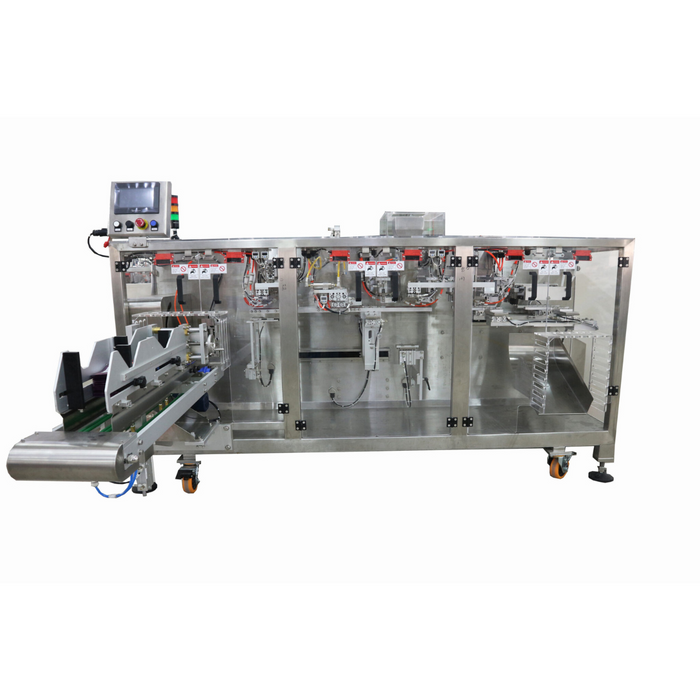

ActionPac Automated Poucher Machine (AP210, AP360)

Request a Quote

Description

AP210 (Linear) & AP360 (Rotary) Features

Quick Note: Due to the custom nature of this product, it needs to be quoted by one of our agents! Please call us at 1-800-999-1600 for within the USA, or 1-650-556-1333 for international calls.

  • Cutting-edge technology for effortless bag opening, filling, printing, and sealing.
  • Saves time and effort for maximum efficiency.
  • Consistently fills bags to the right level every time.
  • Eliminates manual labor and delivers consistent results.
  • Say goodbye to inconsistent bag filling.
  • Uses the latest technology for unmatched performance and reliability.

It opens the bag, talks to the sealer above it, closes the bag and seals it. All automatically. Your production speed depends upon the filling device above which could be anything from a 1 lane, 2 lanes, 3 lanes, or even a 10-14 scale head in a radial design to fill your bags up to 120 bags a minute.

Pre-Made Side Gusseted & Zipper Pouch

Automatically Opens Holds for fill seals in place.

  • Operating Speeds 10-15 BPM
  • Economical Small Footprint
  • Simple to Operate
  • No Bag to Fill
  • Load Bags while Running
  • Easily Adjustable
  • Low Operating & Maintaining Costs

Features of the AP210 and AP360

  • Bag Loading - The process starts with up to 50 empty pouches being placed into the adjustable magazine. Bags can be loaded while the machine is in operation.
  • Bag Detection - Multiple bag detection switches are used at various points in the cycle to ensure correct bag placement and full bag opening. Should a reject bag be detected, it is ejected from the machine, and the process continues. Rejected bags can be inspected by the operator and re-used if good.
  • Bag Opening - Pouches are individually removed from the cartridge with a unique combination of vacuum and pneumatic actuators. They are rotated/transferred to the fill area and opened.
  • Transition Chute - Doubling as a timing bucket, the product enters the transition chute while the bag is being opened below. Upon pouch detection, the Chute/Funnel enters the bag and opens the gate. The product is dispensed immediately, without spillage, and the seal is protected from contamination. The difficult product that easily bridges is dispensed into the pouch directly from the filler through the "open gate.''
  • Filling - During filling, pouches are held in place with our positive-hold gripper system. This allows for heavyweights and shock loads without altering the bag Position.
  • Sealing - Digitally controlled ribbed or flat constant heat seal bars give an integral, attractive seal. Pouches are sealed ''in place," eliminating wrinkles, folded corners, and non-aligned seals.
  • Machine Controls - System controls are fully solid state using a commercial Programmable Logic Controller [PLC] and pneumatics. Indicator lights signal all cycle processes for easy monitoring.

Automated Poucher Machine Specifications

  • Bag Width Range: 150 mm- 280 mm
  • Bag Length Range: 150 mm-320 mm
  • Power: 220 VAC 20 Amps
  • Air: 7.0 CFM @ 80 psi
  • Includes: Machine, Scale Stand (2 x 2 or 3 x 3  material with levelers), Transfer Funnel, SMC Pneumatic Components, & Hot Stamp Printer - Date Coder

Available Accessories

Call us to add accessories!

  • Take Away Conveyor: (304 SS)
  • Heavy Weight Supporter (required for weights above 3 lbs)
  • Zipper Opener (opens closed zippers before filling) slows speed down.
