H1 Nespresso Capsule Filler Nespresso Pod Filling Machine

H1 Nespresso Capsule Filler Nespresso Pod Filling Machine

$22,500.00

Description

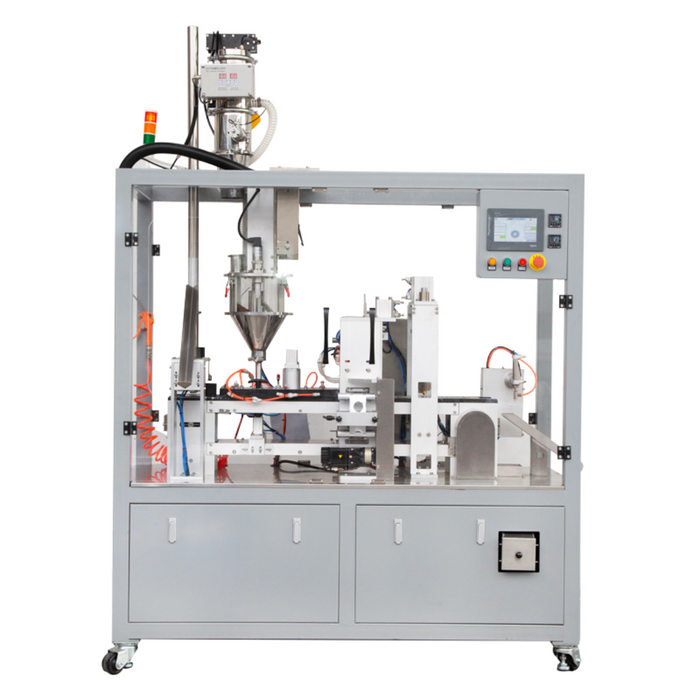

The AF-H1 Nespresso capsule filler is a compact, automated machine designed for producing high-quality coffee capsules.



This capsule filler features a PLC control and a touchscreen interface for user-friendly operation and includes functions such as automatic sorting, filling, sealing, and intelligent error detection.



The AFPAK H1 pod-filling machine supports various capsule types, including biodegradable options, and can be repurposed for different products like K cups and Lavazza capsules.

At a Glance: H1 Nespresso Capsule Filler

  • Machine Type: Compact Nespresso capsule filler
  • Key Functions: Automatic sorting, filling, sealing, cup-out function
  • Compatibility: Biodegradable, plastic, aluminum capsules; adaptable for K cups, Lavazza capsules, etc.
  • Operation: PLC control, touch screen, mobile with four wheels
  • Optional Features: Inline weight detector, auto screw feeder, automated packaging solutions.





H1 Nespresso capsules filler helps you produce your own coffee capsules quickly!

AF-H1 Nespresso capsule filler is a good solution to fill coffee in Nespresso capsules/pods, seal with Nitrogen gas. Especially suited well for a starter company to build their own coffee capsule products.



The H1 is small and compact, with all the features to produce the highest quality Nespresso coffee capsules.



The Nespresso pod filling machine can realize complete these functions: Automatic pod sorting (designed for biodegradable pods), automatic filling, automatic sealing, automatic cup-out function; more intelligent operation, such as no cup, no filling, no sealing function, material shortage alarm, Automatic feeding, and other more.



This series of equipment adopts PLC control and touch screen operation, so customers can easily learn and operate. It has four wheels and can be easily moved to any place; you only need to leave a space of 1m around the device.



This Nespresso capsule filler is suitable for the production of biodegradable, plastic, and aluminum Nespresso capsules. It can also replace molds and accessories to produce other capsule products such as K cups, Lavazza capsules, dolce gusto pods, etc.



Please note that this Nespresso capsule filler machine needs to be used with an air compressor. You can use a nitrogen generator or rent a nitrogen tank locally to supply nitrogen to the equipment. We can also provide you with a complete system.

Compact and efficient - H1 Nespresso Capsule Filler Specifications

  • Filling head: 1 head
  • Filling Accuracy: ±0.2g
  • Machine speed: 1800-3000 cph
  • Voltage: 220V/50/60HZ/1PH
  • Machine size: 1800*700*2000mm
  • Machine weight: 700 kg (1,543.24 pounds)
  • Note: This is a custom-build machine, so each machine's specifications will have different

Features of the AFPAK H1

  1. Very suitable filling and sealing equipment for new and smaller enterprises to produce high-quality Nespresso pods
  2. High-speed production will bring more possibilities to your products in the future.
  3. Perfect sealing makes your Nespresso capsules fresher.
  4. High-concentration nitrogen filling allows your coffee to be better protected while filling and sealing.
  5. The small footprint of the H1 can be produced in the laboratory.
  6. More advanced performance makes your production more stable and reliable.
  7. This pod filler is easier to use and maintain, with no need for professional technicians, and you can easily use it yourself.

Basic Functions of the H1

  • Automatic Vibrate Sort and feed the empty Nespresso capsules (optional function）
  • It automatically detects whether capsules are loaded well on the machine by the sensor.
  • Equipped with a servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjusted)(Nitrogen flushing here)
  • It cleans the capsule edge and presses the coffee tightly.
  • Put pre-cut lids (can also use rolled film) (Nitrogen flushing here)
  • Outputs to the conveyor
  • Outputs the finished capsules

Optional Functions

Call us at 1-800-999-1600 to add one of these options.

  • Inline weight detector
  • Auto Screw feeder
  • Cut and put the filter on the capsule button.
  • The machine of packing 1/10/20 pcs in one bag machine.
  • The machine of packing 4/10 pcs in one box machine.
